Kimya

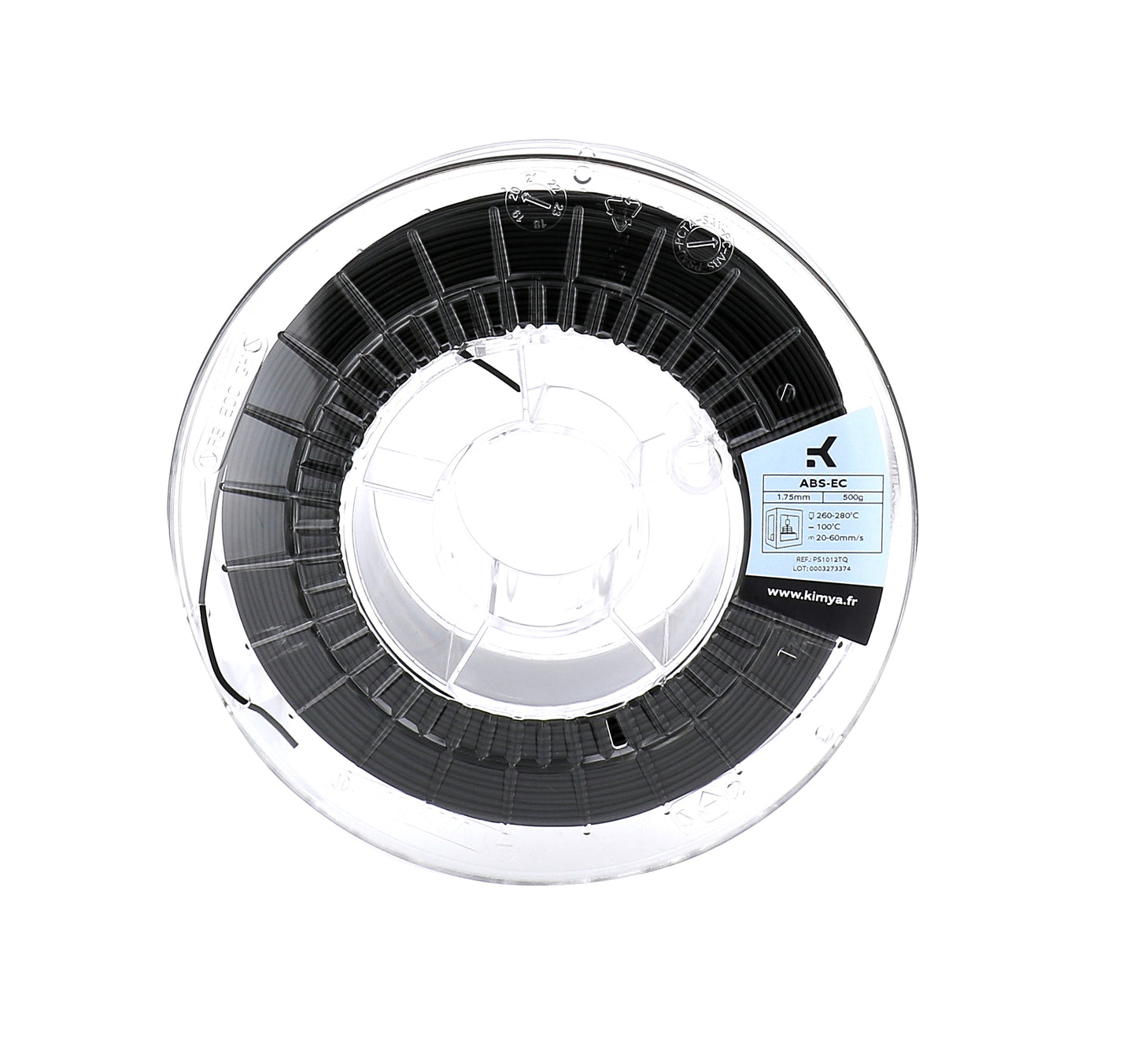

KIMYA ABS-EC 500g
The electrically conductive ABS based filament from Kimya.
Filament Properties
| Description | Test Methods | Values |
| Diameter | INS-6712 |
1.75mm +/- 0.1mm 2.85mm +/- 0.1mm |
| Density | ISO 1183 | 1.035g/cm3 |
| Moisture rate | INS-6711 | <0.5% |
| Melt Flow Index (MFI) (@280°C – 10 kg) | SO 1133 | 8-16g/10min |
| Glass transition temperature (Tg) | ISO 11357 DSC (10°C/min – 20 à 300°C) | 108°C |
Print Parameters
| Printing direction | XY |
| Printing speed | 45 mm/s |
| Infill | 100% - rectilinear |
| Infill angle | 45°/-45° |
| Extrusion temperature | 260°C |
| Bed temperature | 95°C |
