Makerbot

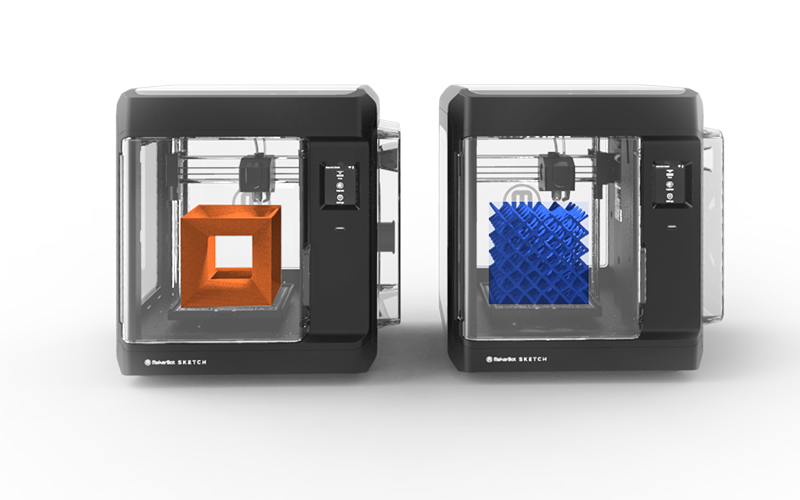

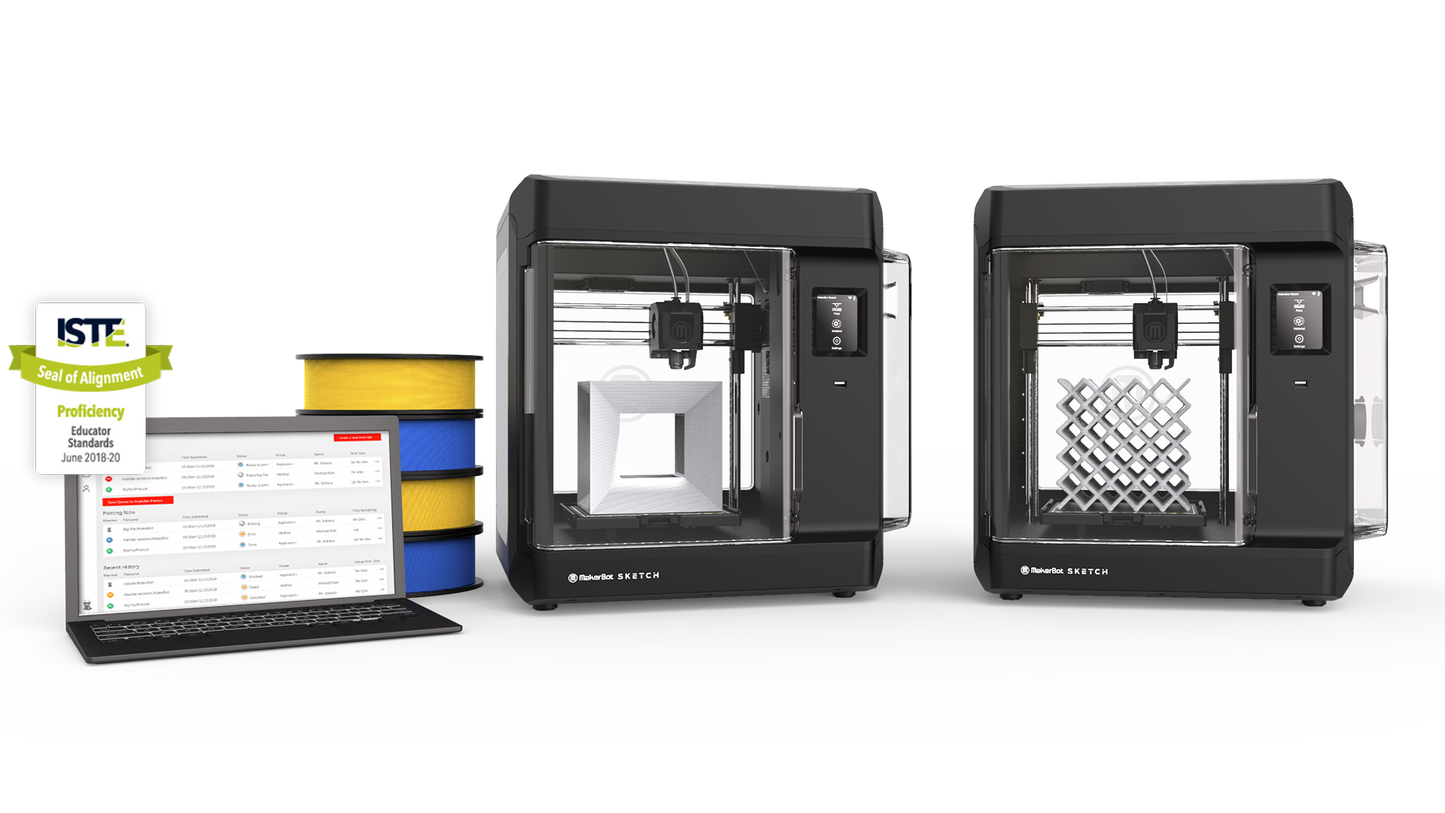

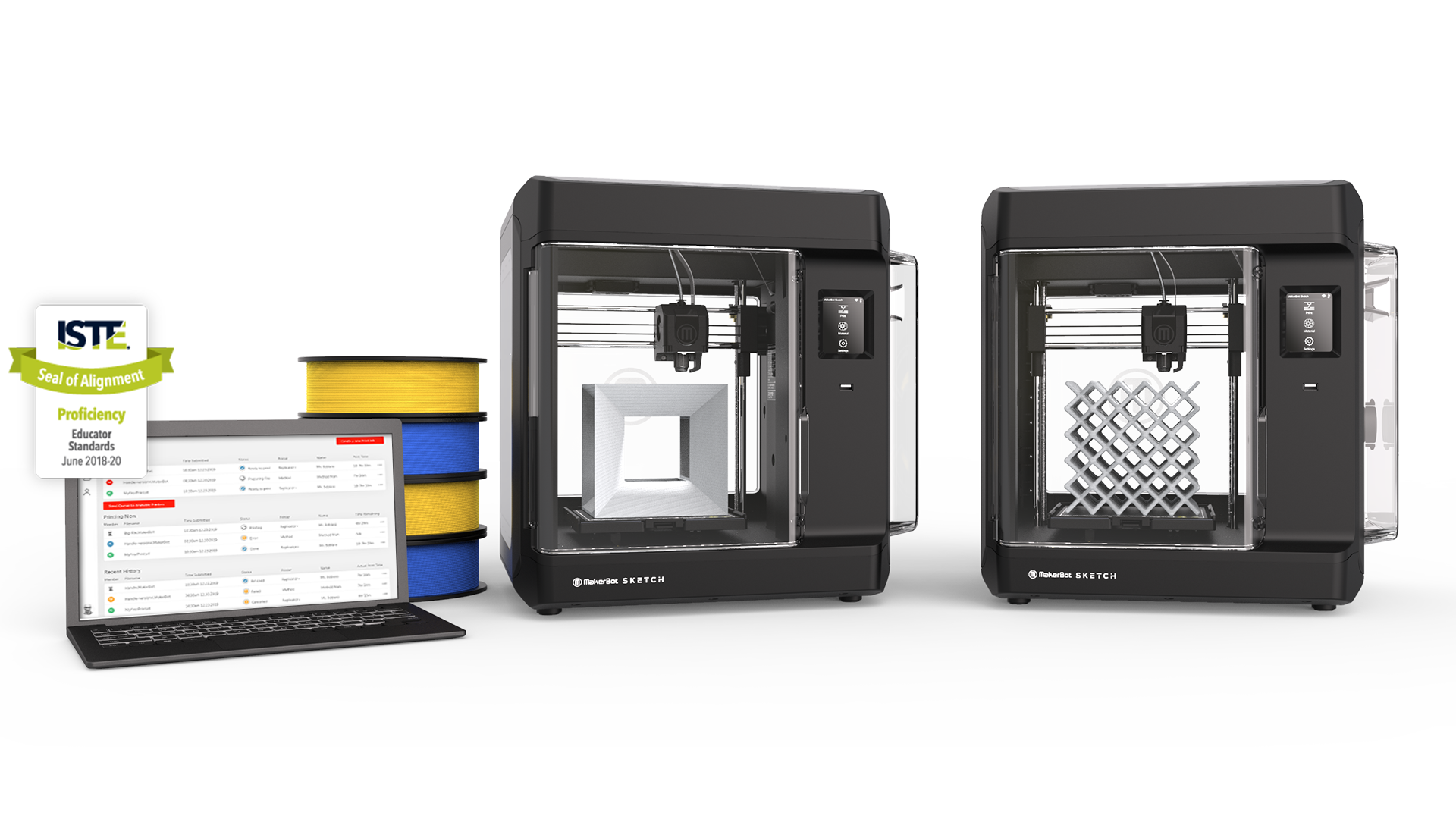

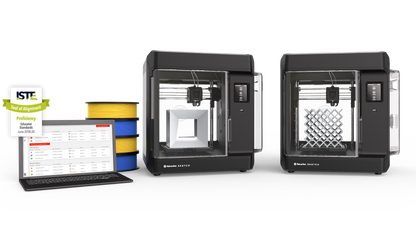

MakerBot SKETCH



***Additional 15% OFF Clearance. ALL SALES FINAL***

MakerBot SKETCH Features:

  • Heated and Flexible Buildplate
  • Enclosed Chamber
  • Touch screen controls

Technical Specs

Print

Print technology  Fused deposition modeling
Build volume 150mm x 150mm x 150mm
Layer resolution 100-400 microns
Material diameter 1.75mm
Material compatibility MakerBot Sketch PLA Material
MakerBot Sketch Tough Material
Extruder Compatibility MakerBot Sketch Extruder
Nozzle Diameter 0.4mm
Print FIle Type .MAKERBOT


Software

 Software Bundle MakerBot Print Software
Supported File Types MakerBot (.makerbot)
STL (.stl)
SolidWorks (.sldprt, .sldasm)
InventorOBJ (.ipt, .iam)
IGES (.iges, .igs)
STEP AP203/214 (.step, .stp)
CATIA (.CATPart, .CATProduct)
Wavefront Object (.obj)
Unigraphics/NX (.prt)
Solid Edge (.par, .asm)
ProE/Creo (.prt, .prt., .asm, .asm.)
VRML (.wrl)
Operating Systems Windows (7, 10)
Mac OS X (10.12+)
CAD Plugins SolidWorks, Autodesk Fusion 360, Onshape, Autodesk Inventor



Electrical

Power Requirements 100-­240 V, 50-60 HZ                                     2.7-1.3A
Connectivity USB, Ethernet; Wifi
