XYZ Printing

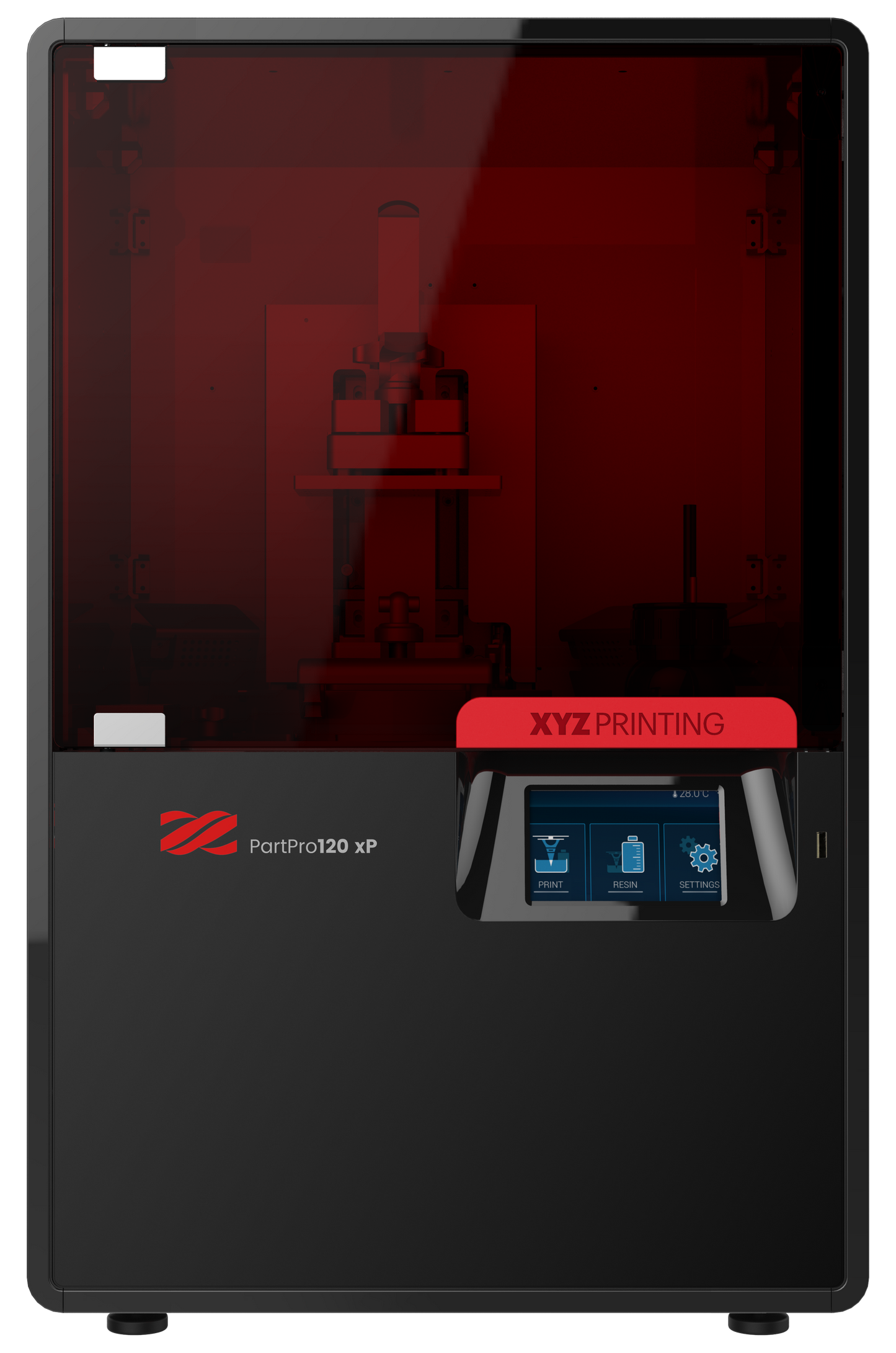

XYZ Printing (Professional) PartPro120 xP

***This item is special order only and will arrive in 10-14 days, printer can be dropped shipped to customers home***


PartPro120 xP is a DLP printer that features remarkably fast printing speed, excellent resolution and an intuitive operation.  Capable in printing in ProBlueHS, ProFlex, ProUtility, ProAccure and Eeezcast+

Printer Properties

Model XYZ Printing (Professional) PartPro120 xP
Print Technology UFFTM (Ultra Fast Film) / DLP Technology
Build Volume (WxDxH) 114 × 64 x 100 mm
Layer Resolution
25 / 50 / 100 micron (Material dependent)
X-Y Resolution 60 micron
Light Source UV LED λ 405 nm
User Interface
5" Touch panel LCD (RTP)
Language Multilingual
Connectivity Wireless / Ethernet / USB 2.0 Cable / USB Flash Drive (FAT32)


Operating Requirements

Power Requirement 100 - 240V 50/60Hz 120W
Operation Temperature 20 - 30 °C / 68 - 86 °F
*If a different operating temperature is printed on the label on the resin bottle, please adhere to recommended conditions on the label.
Operation Humidity 40 - 80 % RH (No Condensation)
Storage Temperature-Resin 10 - 32 °C / 50 - 89.6 °F



 Product Dimensions (WxDxH) 470 x 398 x 745 mm (18.5 x 15.7 x 29.3 inch)
Product Weight 34 kg (75.0 lbs)
Packed Dimensions (WxDxH) 606 x 505 x 846 mm (23.9 x 19.9 x 33.3 inch)
Packed Weight 37.0 kg (81.6 lbs)


Printing Software XYZprint AMUV
Operating System Windows
Supported File Formats .stl / XYZ format (.3ws / .3wn)
